Nuts
Product Features ：

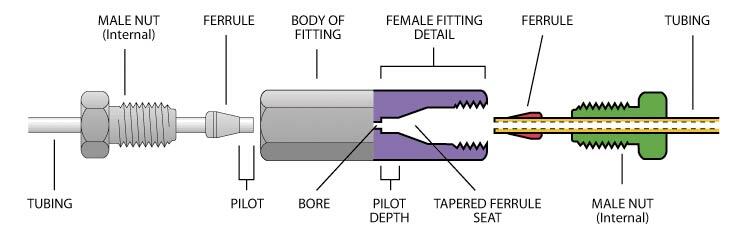

VICI / Valco Compression fitting
When the Nut is locked, the Ferrule is pressed on the Tubing ( pipe ), providing a reliable guarantee for the connection of metal tubing under high pressure conditions.
Nuts
Internal Nuts – Stainless steel (Standard)
Description | Length | Product No. | |
1/32" nut | .30” | ZN.5-10 | |
.45” | LZN.5-10 | ||
1/16" nut | .43” | ZN1-10 | |
.50” | MZN1-10 | ||
.625” | IZN1-10 | ||
.75” | LZN1-10 | ||
1.00” | XLZN1-10 | ||
1/8"nut | .57” | ZN2-10 | |
.82” | LZN2-10 | ||
1.07” | XLZN2-10 | ||
1/4" nut | .70” | ZN4-10 | |
1.11” | LZN4-10 | ||
Ten for one entry | |||
External Nuts - Stainless steel(Standard)
Description | Product No. | ||
1/32" external nut | Hex | EN.5 | |
Knurled | EN.5KN | ||
1/16" external nut | EN1 | ||
1/8" external nut | EN2 | ||
1/4"external nut | EN4* | ||
3/8"external nut | EN6* | ||
1/2" external nut | EN8* | ||
1" external nut | EN1K* | ||
* 1/4",3/8",1/2",1" Standard specification is PTFE plated | |||
Standard fittings are made of stainless steel, special alloys/special surface treatments ( SilcoNert / Sulfinert ) are also available for corrosive or reactive samples such as：HCL, CL2, NH3, sulfide.
