Stream Sample Selection Valve
Product Features ：
VICI / Valco Stream Sample Selection Valve
Low Pressure Selectors Valve

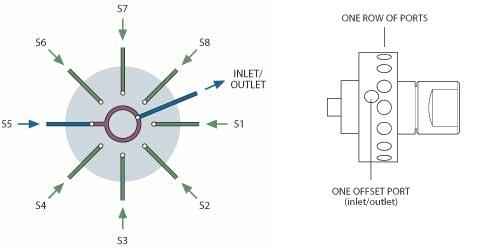

Dead-end Flowpath Selectors (SD) - Low Pressure
The SD valve selects one of 4 to 16 closed flow paths, and the selected flow path flows from the outlet to the sample valve, pressure sensor, detector, column, respectively. The same configuration can also allow the flow path to flow to some outlets, EX：application of partial sample collection.
Flowpath | Fitting Size | Bore size | Temp | Pressure | Positions |
SD (Dead-end) | 1/16" | 0.75mm | 200℃ | 400psi gas | 4, 6, 8, 10, 12, 16 |
1/8" | 1.0mm | 400psi gas | 4, 6, 8 | ||
200psi gas | 10, 12, 16 | ||||
1/4" | 4.0mm | 75℃ | 100psi gas | 4, 6, 8,10 |
Choice：
- 2" , 3" , 4" ( general standard ) or 6" Standoff
- Manual -not recommended / Air actuator / Microelectric actuator
- Special alloy material / Special surface treatment ( SilcoNert / Sulfinert ) can be used for corrosive or reactive samples. EX：HCL、CL2、NH3、Sulfide.
- Special material options are also available.
Replace：
- Selection valve body ( Without Standoff and Actuator )
- Rotor

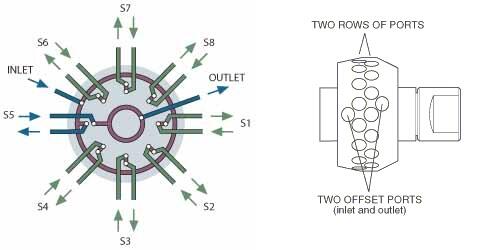

Common Outlet Flowpath Selectors (SC) - Low Pressure
The SC valve selects one of the closed flow paths 4 to 16, and the selected flow path flows from the outlet to the sample valve, pressure sensor, detector and column, respectively. The SC valve has a similar structure to the SD valve in this respect, but instead of the SD valve, the closed flow path is a "non-selective flow path" that flows to the common outlet.
Flowpath | Fitting Size | Bore size | Temp | Pressure | Positions |
SC (Common outlet) | 1/16" | 1.0mm | 200℃ | 200psi gas | 4, 6, 8, 10, 12, 16 |
1/8" | |||||
1/4" | 4.0mm | 75℃ | 100psi gas | 4, 6, 8 |
Choice：
- 2" , 3" , 4" ( general standard ) or 6" Standoff
- Manual -not recommended / Air actuator / Microelectric actuator
- Special alloy material / Special surface treatment ( SilcoNert / Sulfinert ) can be used for corrosive or reactive samples. EX：HCL、CL2、NH3、Sulfide.
- Special material options are also available.
Replace：
- Selection valve body ( Without Standoff and Actuator )
- Rotor

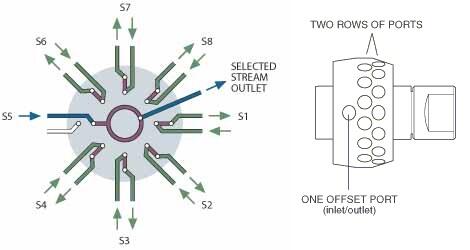

Flow-Through Flowpath Selectors (SF) - Low Pressure
Similar to SD and SC valves, the SF valve selects a flow path to the outlet, but the SF valve allows non-selected flow to a separate outlet instead of a common outlet.
Flowpath | Fitting Size | Bore size | Temp | Pressure | Positions |
SF (Flow-through) | 1/16" | 1.0mm | 200℃ | 200psi gas | 4, 6, 8, 10, 12, 16 |
1/8" | |||||
1/4" | 4.0mm | 75℃ | 100psi gas | 4, 6, 8 |
Choice：
- 2" , 3" , 4" ( general standard ) or 6" Standoff
- Manual -not recommended / Air actuator / Microelectric actuator
- Special alloy material / Special surface treatment ( SilcoNert / Sulfinert ) can be used for corrosive or reactive samples. EX：HCL、CL2、NH3、Sulfide.
- Special material options are also available.
Replace：
- Selection valve body ( Without Standoff and Actuator )
- Rotor

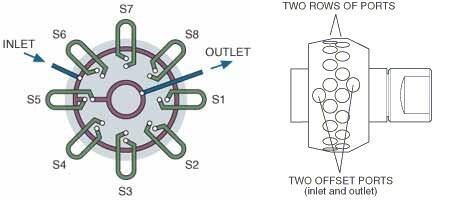

Trapping Flowpath Selectors (ST) - Low Pressure
ST valves are used for multi-column, multi-sample or multi-trap applications and have a choice of 4 to 16 sample loops or positions.
Flowpath | Fitting Size | Bore size | Temp | Pressure | Positions |
ST (Trapping) | 1/16" | 0.75mm | 200℃ | 200psi gas | 4, 6, 8, 10, 12, 16 |
1/8" | 1.0mm |
Choice：
- 2" , 3" , 4" ( general standard ) or 6" Standoff
- Manual -not recommended / Air actuator / Microelectric actuator
- Special alloy material / Special surface treatment ( SilcoNert / Sulfinert ) can be used for corrosive or reactive samples. EX：HCL、CL2、NH3、Sulfide.
- Special material options are also available.
Replace：
- Selection valve body ( Without Standoff and Actuator )
- Rotor
Trapping/Flow-Through Flowpath Selectors (STF) - Low Pressure
The STF valve is a variant of the SF flow path, the only difference is that the non-selective flow path flows back to its own vent instead of the closed flow path or adsorption flow path in the standard ST configuration.
Flowpath | Fitting Size | Bore size | Temp | Pressure | Positions |
STF (Trapping / Flow-through) | 1/16" | 0.75mm | 200℃ | 200psi gas | 4, 6, 8, 10, 12, 16 |
1/8" | 1.0mm |
Choice：
- 2" , 3" , 4" ( general standard ) or 6" Standoff
- Manual -not recommended / Air actuator / Microelectric actuator
- Special alloy material / Special surface treatment ( SilcoNert / Sulfinert ) can be used for corrosive or reactive samples. EX：HCL、CL2、NH3、Sulfide.
- Special material options are also available.
Replace：
- Selection valve body ( Without Standoff and Actuator )
- Rotor
High Pressure Selectors Valve
Dead-end Flowpath Selectors (SD) - High Pressure
The SD valve selects one of 4 to 16 closed flow paths, and the selected flow path flows from the outlet to the sample valve, pressure sensor, detector, column, respectively. The same configuration can also allow the flow path to flow to some outlets. EX：the application of sample part collection.
Flowpath | Fitting Size | Bore size | Temp | Pressure | Positions |
SD (Dead-end) | 1/16" | 0.40 mm | 75°C | 5000psi liq | 4, 6, 8, 10, 12 |
1/8" | 0.75 mm | 75°C | 5000psi liq | 4, 6, 8 |
Choice：
- 2" , 3" , 4" ( general standard ) or 6" Standoff
- Manual -not recommended / Air actuator / Microelectric actuator
- Special alloy material / Special surface treatment ( SilcoNert / Sulfinert ) can be used for corrosive or reactive samples. EX：HCL、CL2、NH3、Sulfide.
- Special material options are also available.
Replace：
- Selection valve body ( Without Standoff and Actuator )
- Rotor

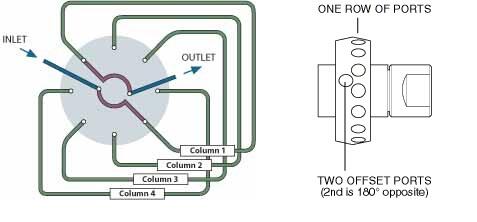

Both-Ends-Selected Flowpath Selectors (ST) - High Pressure
ST valves are used for multi-column, multi-sample or multi-trap applications and have a choice of 4 to 16 sample loops or positions. This valve can be used between the injector and the detector to allow manual or motorized HPLC column selection.
Flowpath | Fitting Size | Bore size | Temp | Pressure | Positions |
ST ( Both column ends selected) | 1/16" | 0.40 mm | 75°C | 5000psi liq | 4, 6 columns or loops |
Choice：
- 2" , 3" , 4" ( general standard ) or 6" Standoff
- Manual -not recommended / Air actuator / Microelectric actuator
- Special alloy material / Special surface treatment ( SilcoNert / Sulfinert ) can be used for corrosive or reactive samples. EX：HCL、CL2、NH3、Sulfide.
- Special material options are also available.
Replace：
- Selection valve body ( Without Standoff and Actuator )
- Rotor
