Tees & Crosses
Product Features ：
VICI / Valco Compression fitting
When the Nut is locked, the Ferrule is pressed on the tubing ( pipe ), providing a reliable guarantee for the connection of metal tubing under high pressure conditions.

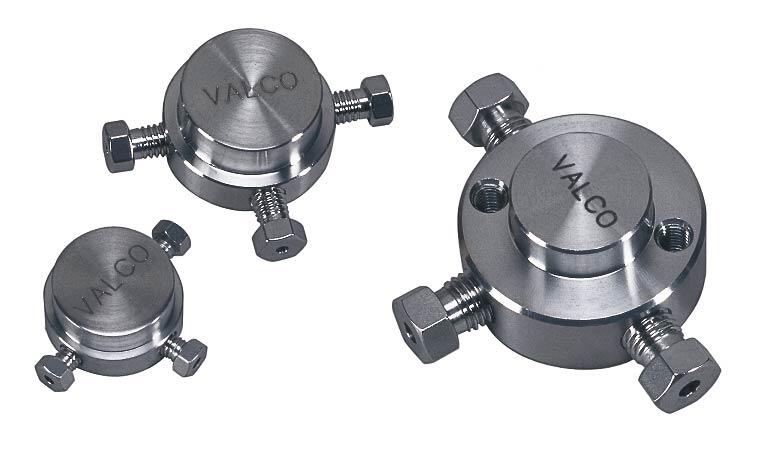

Tees
Tees
Tubing OD | Bore | Product No. | |
1/32" | 0.25 mm | ZT.5 | |
0.50 mm | ZT.5L | ||
1/16" | 0.25 mm | ZT1C | |
0.50 mm | ZT1M | ||
0.75 mm | ZT1 | ||
1.0 mm | ZT1L | ||
1/8" | 0.75 mm | ZT2 | |
2.0 mm | ZT2L | ||
1/4" | 1.0 mm | ZT4 | |
4.6 mm | ZT4L |

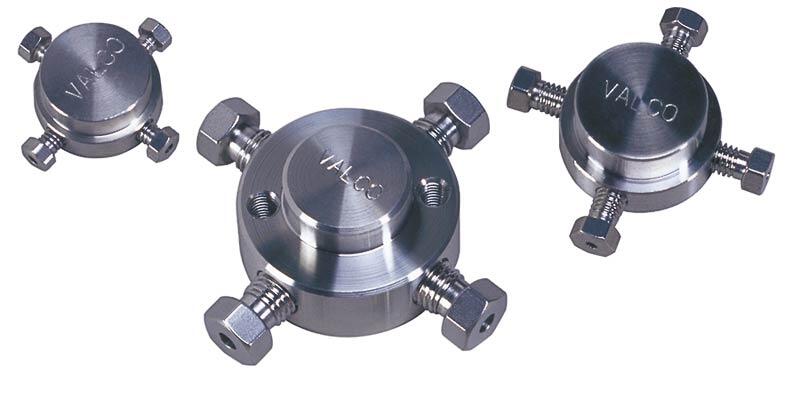

Crosses
Tubing OD | Bore | Product No. | |
1/32" | 0.25 mm | ZX.5 | |
0.50 mm | ZX.5L | ||
1/16" | 0.25 mm | ZX1C | |
0.50 mm | ZX1M | ||
0.75 mm | ZX1 | ||
1.0 mm | ZX1L | ||
1/8" | 0.75 mm | ZX2 | |
2.0 mm | ZX2L | ||
1/4" | 1.0 mm | ZX4 | |
4.6 mm | ZX4L |
Standard fittings are stainless steel, special alloys/special surface treatments ( SilcoNert / Sulfinert ) are also available for corrosive or reactive samples such as：HCL, CL2, NH3, sulfide.
