Reducing Unions
Product Features ：
VICI / Valco Compression fitting
When the Nut is locked, the Ferrule is pressed on the Tubing ( pipe ), providing a reliable guarantee for the connection of metal tubing under high pressure conditions.
Reducing Unions

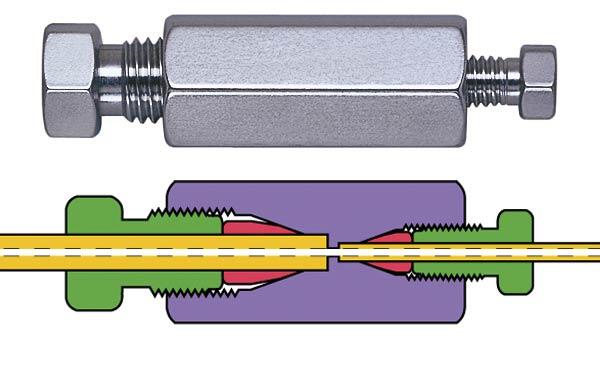

Internal Reducing Unions – Stainless steel (Standard)
Tubing OD | Bore | Product No. | |
1/16" to 1/32" | 0.15mm | ZRU1.5XC | |
0.25mm | ZRU1.5 | ||
0.50mm | ZRU1.5L | ||
1/32" | ZRU1.5T | ||
1/8" to 1/32" | 0.25mm | ZRU2.5 | |
0.50mm | ZRU2.5L | ||
1/32" | ZRU2.5T | ||
1/8" to 1/16" | 0.25mm | ZRU21C | |
0.75mm | ZRU21 | ||
1/16" | ZRU21T | ||
1/4" to 1/16" | 0.25mm | ZRU41C | |
0.75mm | ZRU41 | ||
1/16" | ZRU41T | ||
1/4" to 1/8" | 0.75mm | ZRU42 | |
2.0mm | ZRU42L | ||
1/8" | ZRU42T |

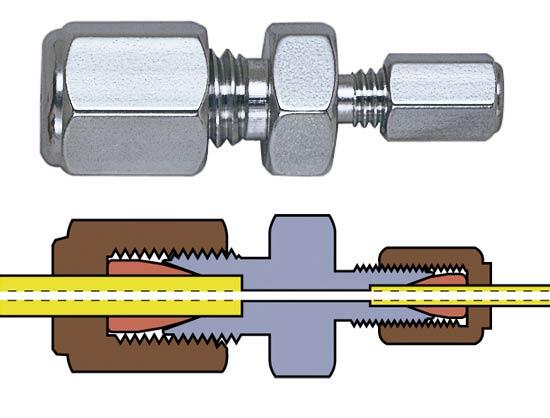

External Reducing Unions – Stainless steel (Standard)
Tubing OD | Bore | Product No. | |
1/8" to 1/16" | 0.75mm | ERU21 | |
1.00mm | ERU21L | ||
1/16" | ERU21T | ||
1/4" to 1/16" | 0.75mm | ERU41 | |
1/16" | ERU41T | ||
1/4" to 1/8" | 0.75mm | ERU42 | |
2.0mm | ERU42L | ||
1/8" | ERU42T |

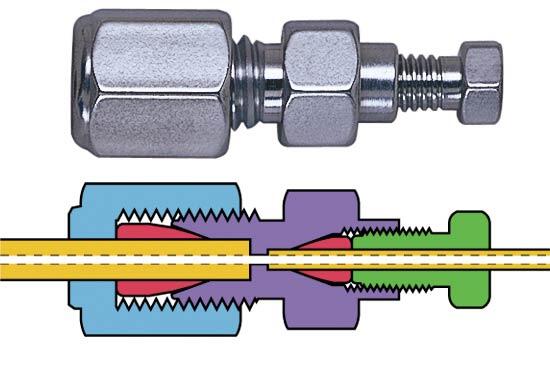

External / Internal Reducing Unions - Stainless steel (Standard)
Tubing OD | Bore | Product No. | |
1/16" to 1/32" | 0.25mm | EZRU1.5 | |
0.50mm | EZRU1.5L | ||
1/32" | EZRU1.5T | ||
1/8" to 1/32" | 0.25mm | EZRU2.5 | |
0.50mm | EZRU2.5L | ||
1/32" | EZRU2.5T | ||
1/8" to 1/16" | 0.25mm | EZRU21C | |
0.75mm | EZRU21 | ||
1/16" | EZRU21T | ||
1/4" to 1/16" | 0.25mm | EZRU41C | |
0.75mm | EZRU41 | ||
1/16" | EZRU41T | ||
1/4" to 1/8" | 1.0mm | EZRU42 | |
2.0mm | EZRU42L | ||
1/8" | EZRU42T |

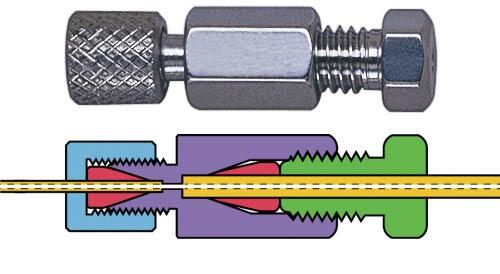

Internal / External Reducing Unions - Stainless steel (Standard)
Tubing OD | Bore | Product No. | |
1/16" to 1/32" | 0.25mm | EZRU.51 | |
0.50mm | EZRU.51L | ||
1/32" | EZRU.51T |
Standard fittings are stainless steel, special alloys/special surface treatments ( SilcoNert / Sulfinert ) are also available for corrosive or reactive samples such as：HCL, CL2, NH3, sulfide.
