Two Position Valves Injection/Switching Valves
Product Features ：
VICI / Valco Two Position Valves Injection Valves / Switching Valves

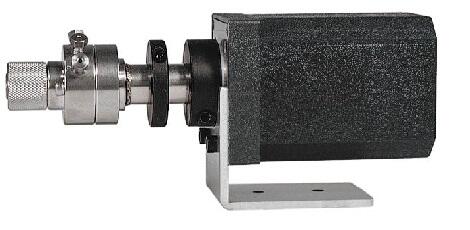

Two Position Internal Sample Injectors
Temp | Pressure | Fitting | Bore size | Sample sizes |
175°C | 1000 psi liq | 1/32" | 0.25 mm | .06, .1, .2, or .5 µl |
1/16" | 0.40 mm | .06, .1, .2, or .5 µl | ||
0.75 mm | .2, .5, 1, or 2 µl | |||
1/8" | 0.75 mm | .2, .5, 1, or 2 µl |
Choice：
- 2"( general standard ) , 3" , 4" or 6" Standoff
- 4 ( general port) , 6 or 8 孔 Port
- Manual / Manual with standoff / Air actuator / Microelectric actuator
- Special alloy material / Special surface treatment ( SilcoNert / Sulfinert ) can be used for corrosive or reactive samples，EX：HCL、CL2、NH3、Sulfide.
- Special material options are also available
Replace：
- Two position valve body ( Without Standoff and Actuator )
- Rotor

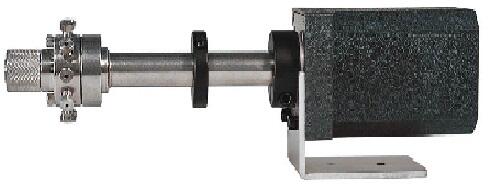

Two Position Sampling and Switching Valves
Temp | Max temp | Pressure | Ports available | Fitting | Bore size |
High temperature | 330°C | 300 psi gas | 4, 6, 8, 10 port | 1/32" | 0.25 mm |
1/16" | 0.40 mm | ||||
0.75 mm | |||||
1/8" | 0.75 mm | ||||
Medium temperature | 225°C | 400 psi gas | 4, 6, 8, 10 port | 1/32" | 0.25 mm |
1/16" | 0.40 mm | ||||
0.75 mm | |||||
1/8" | 0.75 mm | ||||
Low temperature | 75°C | 100 psi gas | 4, 6, 8 port | 1/4" | 4.00 mm |
Choice：
- 2"( general standard) , 3" , 4" or 6" Standoff
- Manual / Manual with standoff / Air actuator / Microelectric actuator
- Special alloy material / Special surface treatment ( SilcoNert / Sulfinert ) can be used for corrosive or reactive samples，EX：HCL、CL2、NH3、Sulfide.
- Special material options are also available
Replace：
- Two position valve body ( Without Standoff and Actuator )
- Rotor
